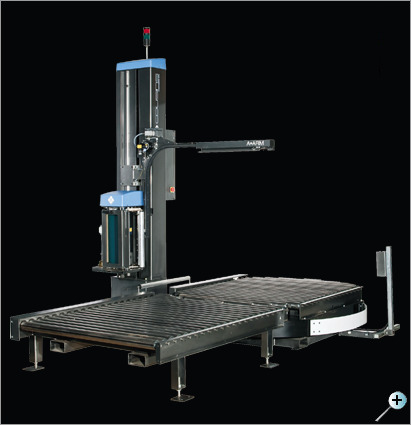

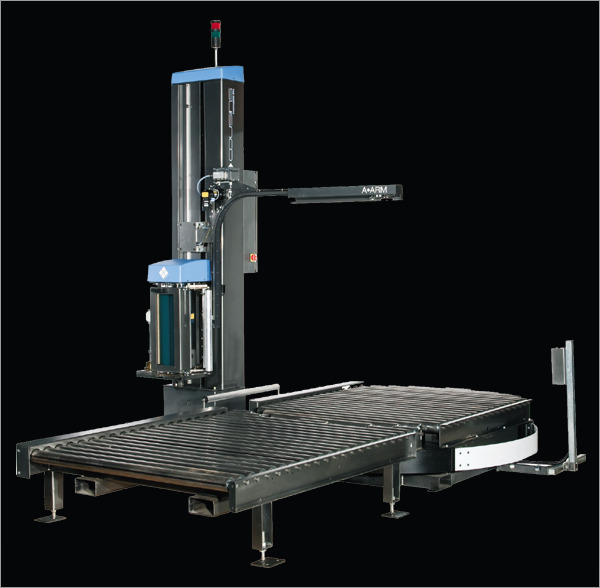

| Production
Speed: |
 1-35
loads per hour
NOTE: Process rates will vary with load size,
number of wraps & forklift load/unload
time |
 |
| Load Capacity: |
Maximum
load weight: 4,000# dynamic – 12,000#
static
Maximum load size: 48” W x 48” L
(68” max. load
diagonal) x 80” H (plus up to 2” top
overlap) |
|
| Turntable: |
72” diameter
3/8” thick laser-cut steel plate with
5” skirt
Front and side cut-outs with UHMW
flexible contouring for
fork truck access
6-point heavy duty ball bearing caster
support system
ANSI # 60 direct chain drive c/w chain
tensioner
3-16 RPM rotational speed c/w soft
start acceleration
3/4 HP DC variable speed motor c/w
turntable holding
brake
Final revolution deceleration and
positive stop alignment |
|
| Film Carriage Elevator: |
1/2
HP DC variable speed motor
ANSI #40 direct chain drive c/w shock
dampener &
Anti-Fall
Safety Device
Maintenance free 12 point carriage
guidance system |
|
| Film Delivery System: |
Super
Rapid Thread™ 20” capacity pre-stretch
carriage
with Patent Pending pressure balanced nip
roller system
1/2 HP DC variable speed motor
Fully electronic dynamic dancer corner
compensation
33 to 313% fixed stretch capability
Pre-stretch ratio variable by easy
sprocket change
Rapid Thread™ Safety Door with
auto power cut-off
switch
Carriage Descent Obstruction Safety Shut-Off
Device
Side mounted film carriage for operator
convenience and
safety |
|
| Powered Roller Conveyor: |
Basic system includes: 72” dia.
powered Process/Turntable
section & 5 ft. Gravity Outfeed section.
Turntable section includes:
Chain driven live roller conveyor rated 4,000#
per section
2-1/2” diameter 11 gauge rollers
c/w 11/16” hex axles on 3” centers
ANSI # 40 roller to roller chain drive
50” effective roller width
Conveyor
speed variable up to 30 FPM with electronic
soft
start
Pass-line height – 16-1/2” from
floor to top of rollers
1/2 HP DC variable speed motor |
|
| Control Features: |
PANASONIC
PLC with Touchscreen Operator Interface
Power Off – On – Reset
switch & Power
On indicator light
Cycle Pause for applying top sheets
Reinforce Wrap control for mid-wrapping
Emergency Stop button
Turntable Jog button
Film Carriage Lower & Raise buttons
Eject Load (Turntable Conveyor Jog)
button
Film tension (Force-to-Load) control
Separate film carriage raise & lower
speed controls
Variable turntable speed control
Triple beam auto load height sensing
photo-eye, detects dark
or shiny loads
Separate 1 to 12 revolution top & bottom
wrap control
Selectable
Reduced Film Tension parameters for
wrapping
top and/or bottom of load
Gravity conveyor full photo-eye
Broken film/out of film detection
c/w automatic machine
reset
Stack-light beacon indicates run,
clear or fault conditions
Pendant Start/Stop push-button station
for remote
operator
control – optional lanyard or wireless
remote
control available
NEMA 12 control panel enclosure
Non-proprietary UL/CSA approved components |
|
| Automation Features: |
“All Electric – No Pneumatics
Required”
“Patent Pending” Cousins
exclusive patent pending A-Arm film
cut and hold device starts and ends the wrap
process at the top
of the load. This uniquely different approach
to attaching and
cutting the stretch film provides you with
these benefits:
Selectable top banding capability
Stabilizes the load early in the wrap
cycle
Places the ending film tail at the
top of the load instead of the
bottom
There is no film clamp on the turntable
that can be
damaged
by debris or operator error – eliminates
the need
for a film
clamp power source on the turntable for easier
maintenance
Load placement on the turntable is
not critical
No air hook-ups or noisy compressors
Automatic First Revolution Load Scanning
Safety
Feature detects uneven or partial stacked
top layers and
automatically adjusts A-Arm height clear
of obstructions
A-Arm Anti-Fall Safety Device
|
|
Structural Features:
|
All
structural steel construction
Forklift truck portable base structure
design – lifting
tubes
included for front and rear access
Fully guarded structural steel H-beam
machine tower
Electro-static powder coated paint
finish |
|
| Electrical Requirement: |
115
Volts 1 Phase 60 Hz 20 Amps |
