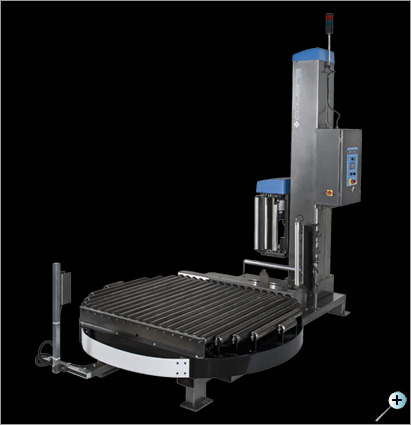

| Production
Speed: |
 1-40
loads per hour
NOTE: Process rates will vary with load size,
number of wraps & forklift load/unload
time |
 |
| Load Capacity: |
Maximum
load weight: 4,000# dynamic – 12,000#
static
Maximum load size: 48” W x 48” L
(68” max. load
diagonal) x 80” H (plus up to 4” top
overlap)
Minimum load size: 30” W x 30” L
x 24” H |
|
| Turntable: |
72” diameter
3/8” thick laser-cut steel plate with
5” skirt
Front and side cut-outs with UHMW
flexible contouring for
fork truck access
6-point heavy duty ball bearing caster
support system
ANSI # 60 direct chain drive c/w chain
tensioner
3-16 RPM rotational speed c/w soft
start acceleration
3/4 HP DC variable speed motor c/w
turntable holding
brake
Final revolution deceleration and
positive stop alignment |
|
| Film Carriage Elevator: |
1/2
HP DC variable speed motor
ANSI #40 direct chain drive c/w shock
dampener &
Anti-Fall
Safety Device
Maintenance free 12 point
carriage guidance system |
|
| Film Delivery System: |
Super
Rapid Thread™ 20” capacity pre-stretch
carriage
with Patent Pending pressure balanced nip
roller system
1/2 HP DC variable speed motor
Fully electronic dynamic dancer corner
compensation
33 to 313% fixed stretch capability
Pre-stretch ratio variable by easy
sprocket change
Rapid Thread™ Safety Door with
auto power cut-off
switch
Carriage Descent Obstruction Safety Shut-Off
Device
Side mounted film carriage for operator
convenience and
safety |
|

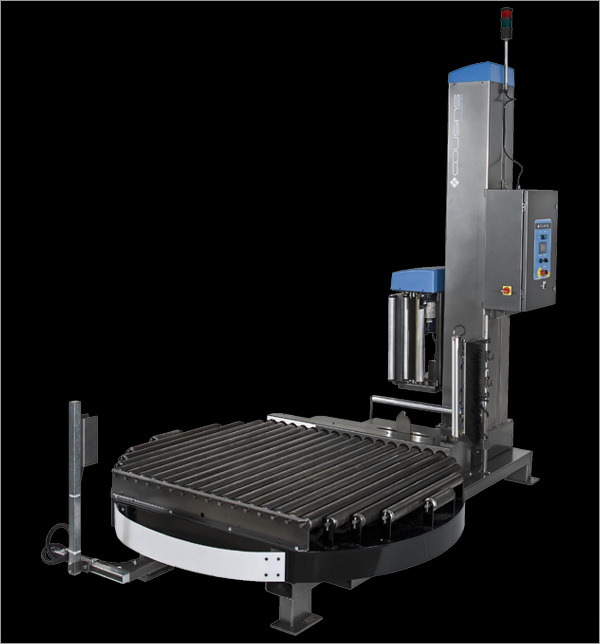

| Powered Roller Conveyor: |
Basic system includes: 72” dia.
powered Process / Turntable
section & 5 ft. Gravity Outfeed section
Turntable section includes:
Chain driven live roller type conveyor
Rated 4,000# per section
2-1/2” diameter 11 gauge rollers
c/w 11/16” hex axles on 3” centers
ANSI # 40 roller to roller chain drive
50” effective roller width
Conveyor
speed variable up to 30 FPM with electronic
soft start
Pass-line height – 16-1/2” from
floor to top of rollers
1/2 HP DC variable speed motor |
|
| Control Features: |
PANASONIC
PLC with Touchscreen Operator Interface
Power Off – On – Reset
switch & Power
On Indicator light
Cycle Pause for applying top sheets
Reinforce Wrap control for mid-wrapping
Emergency Stop button
Turntable Jog button
Film Carriage Lower & Raise buttons
Film Clamp Open/Close button
Eject Load (Turntable Conveyor Jog)
button
Film Tension (Force-to-Load) Control
Selectable Reduced Bottom Film Force
parameter for
wrapping bottom of load
Separate film carriage raise & lower
speed controls
Variable turntable speed control
Triple beam auto load height sensing
photo-eye, detects dark
or shiny loads
Separate 1 to 12 revolution top & bottom
wrap control
Gravity conveyor full photo-eye
Broken film/out of film detection c/w
automatic machine
reset
Stack-light beacon indicates run, clear
or fault conditions
Pendant Start/Stop push-button station
for remote
operator
control – optional lanyard or wireless
remote
control available
NEMA 12 control panel enclosure
Non-proprietary UL/CSA approved components |
|
| Automation Features: |
“All Electric – No Pneumatics
Required”
Electro-mechanically actuated film
clamp mechanism
Electro-mechanically actuated film
tail cut/wipe arm
mechanism
Ni-chrome
impulse hot wire film cut off c/w automatic
periodic
cleaning cycle |
|
Structural Features:
|
All
structural steel construction
Forklift truck portable base structure
design – lifting
tubes
included for front and rear access
Fully guarded structural steel H-beam
machine tower
Electro-static powder coated paint
finish |
|
| Electrical Requirement: |
115
Volts 1 Phase 60 Hz 20 Amps |
