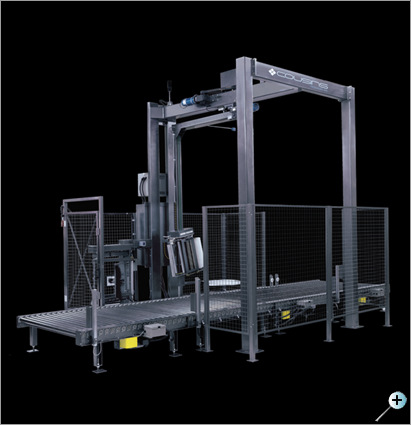

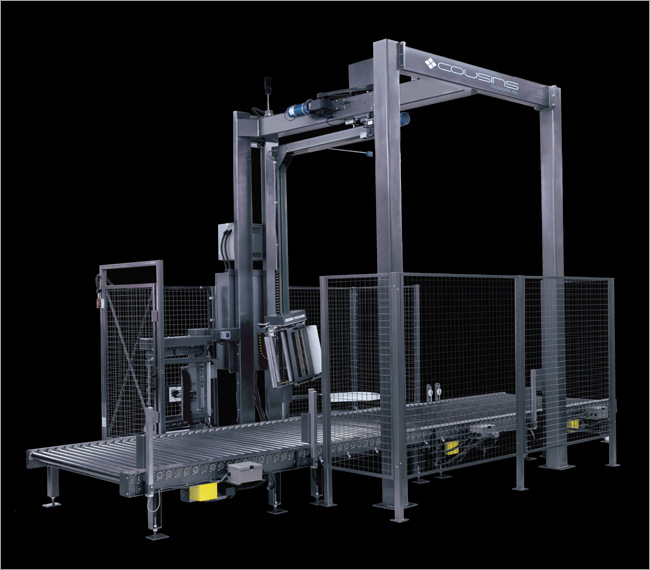

4100-45-OHA Features and Specifications
Production Speed:   1-45 loads per hour
NOTE: Process rates will vary with load size, number of wraps & conveyor speed
Load Capacity:   Maximum load weight: 4000# dynamic – 12,000# static
  Maximum load size: 50” W x 50” L (71” max. load
   diagonal) x 80” H (plus up to 4” top overlap)
  Minimum load size: 30” W x 30” L x 24” H
Rotary Arm:   Double flange bearing support system
  Twin V-belt drive pulleys with belt tensioner
  1-14 RPM rotational speed c/w soft start acceleration
  Final revolution deceleration and positive stop alignment
  1/2 HP DC variable speed motor
Film Carriage Elevator:   1/2 HP DC variable speed motor
  Direct flat belt drive system
  Maintenance free 12 point carriage guidance system
Film Delivery System:   Super Rapid Thread™ 20” capacity pre-stretch carriage
   with Patent Pending pressure balanced nip roller system
  1/2 HP DC variable speed motor
  Fully electronic dynamic dancer corner compensation
  33 to 313% fixed stretch capability
  Pre-stretch ratio variable by easy sprocket change
  Rapid ThreadSafety Door with auto power cut-off
   switch
Powered Roller Conveyor: Basic system: 5ft infeed section, 11ft Process/wrap zone section and 5ft exit section

Each section includes:
  Chain driven live roller conveyor rated 4,000# per section
  2-1/2” diameter 11 gauge rollers c/w 11/16” hex axles on    3” centers
  All rollers ANSI #40 chain driven, roller to roller
  54” effective roller width
  Conveyor speeds 20 to 50 FPM (specify required speed)    with electronic soft start
  Pass-line height – 18” from floor to top of rollers
  1/2 HP AC variable speed reversible TEFC motor on
   infeed & outfeed conveyors / 3/4 HP AC variable speed
   reversible TEFC motor on process conveyor
  Automatic load indexing and centering by photo-eye &
   PLC logic
Control Features:   PANASONIC FP-X Programmable Logic Controller (PLC)
  HMI Touchscreen Operator Interface Panel
  lluminated Power Start / Reset button
  Emergency Stop button
  Wrap Cycle Start (rewrap) button
  Manual controls provided for rotary arm jog, film carriage
   elevator lower/raise, film clamp open/close and conveyors
   forward/reverse
  Wrap Bypass mode selector switch
  Separate film carriage elevator raise & lower speed
   controls
  Film tension (Force-to-Load) control
  Separate 1 to 12 revolution top & bottom wrap control
  Triple beam auto load height sensing photo-eye, detects    dark or shiny loads
  Broken film/out of film detection c/w automatic machine
   reset and fault beacon light
  Rotary arm and film carriage elevator dynamic braking
  NEMA 12 control panel and junction boxes
  Dust tight slip ring assembly
  Non-proprietary UL/CSA approved components
Automation Features:   Pneumatically actuated film clamp mechanism
  Pneumatically actuated film tail cut/wiper arm
   mechanism
  Ni-chrome impulse hot wire film cut off c/w automatic
   periodic cleaning cycle
Structural Features:
  All structural steel construction
  Structural tube machine tower & frame
  Electro-static powder coated paint finish
Safety Features:   Personnel Safety – Rotary Arm Obstruction
   Emergency Stop Sensor

  Wire mesh safety barriers enclose the wrap zone to
   prevent personnel intrusion
  Operator Access Gates c/w Safety Interlock Switches
   disable machine operation when gate(s) opened
  Hard-wired emergency stop and operator access gate
   circuits with Category 3 dual channel safety relays
Electrical Requirement:   208Y/120 Volts 3 Phase 60 Hz 30 Amps (other voltages
   available – consult factory)
Pneumatic Requirement:   3 CFM @ 80 PSI clean dry pneumatic supply required
  Filter/regulator c/w gauge & lock-out valve provided
Typical System Dimensions:   252” (L) x 148” (W) x 157” (H)
   (Standard includes Conveyors (L) and Control Panel (W) –
   all dimensions approximate)
