Up to 35 loads per hour
NOTE: Process rates will vary with load size,
number of wraps & forklift load/unload
time
Load Capacity:
Maximum load weight: 4500# dynamic – 10,000# static
Maximum load size: 67” W x 67” L (96”
load diagonal) x
80” H

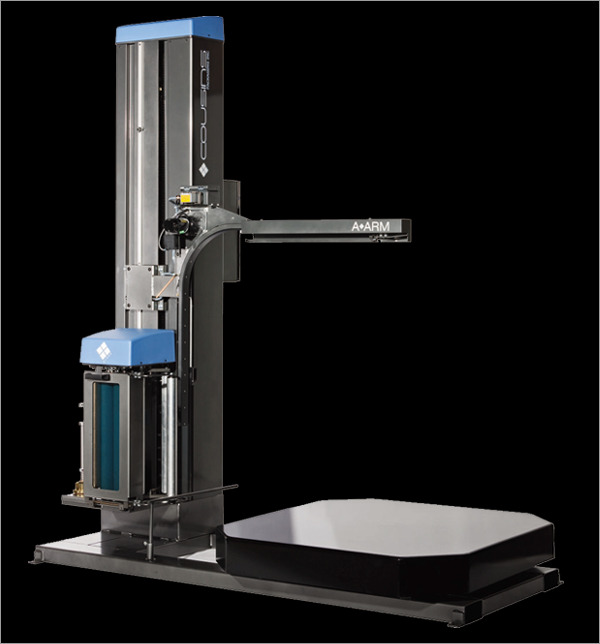

High Profile Turntable:
48” Octagonal formed steel plate
4 point caster support system
Turntable height less than 11” from floor
ANSI # 50 direct chain drive c/w chain tensioner
Between 3 and 12 RPM rotational speed c/w soft start
acceleration
1/2 HP AC variable speed motor
Final revolution deceleration and positive stop alignment
Front and back forklift ports for easy movement
Accu-Count exact turntable positioning system for additional
film savings!
Film Carriage Elevator:
1/2 HP AC variable speed motor
ANSI #40 direct chain drive c/w shock dampener &
Anti-Fall Safety Device
Film Delivery System:
NEW Super Rapid
Thread II ™ 20” capacity pre-stretch
film carriage Special Film Threading
Device – Uniquely orientates
the sticky side of the
film against the pre-stretch
rollers and the inside
of the load 1/2 HP AC variable speed
motor Fully electronic dynamic
dancer corner compensation 33% to 313% fixed stretch
capability Pre-stretch ratio variable
using easy sprocket change Carriage Descent Obstruction
Safety Shut-Off Device Side mounted film carriage
for operator convenience and
safety Superior film-to-roller contact
area Lifetime warranty on pre-stretch
rollers
Automation Features:
“All Electric – No Pneumatics
Required”
“Patent
Pending” Cousins exclusive patent
pending A-Arm film cut and hold device
starts and ends the wrap process at the top of the
load. This uniquely different approach to attaching
and cutting the stretch film provides you with these
benefits:
• Selectable top banding capability
• Stabilizes the load early in the wrap cycle
• Places the ending film tail at the top of
the load instead of
the bottom
• There is no film clamp on the turntable that
can be
damaged by debris or operator error –
also eliminates the
need for slip-rings to supply power onto
the turntable for
less maintenance
• Load placement on the turntable is not critical
• No air hook-ups or noisy compressors
• New Automatic First Revolution Load Scanning
Safety
Feature detects uneven or
partial stacked top layers and
automatically adjusts A-Arm
height clear of obstructions
• A-Arm Anti-Fall Safety Device
Control Features:
Electronic controls with LED operator interface
Wireless remote start/stop control with one transmitter
(additional transmitters are available)
Power Off – On – Reset switch & Power
On indicator
light
Single button Auto Wrap Cycle Start/Pause
Cycle Pause for applying top sheets
Reinforce Wrap control for mid-wrapping
Emergency Stop button
Turntable Jog button
Film Carriage Lower & Raise buttons
Film Tension (Force-to-Load) control
Separate film carriage raise & lower speed controls
Variable turntable speed control
Triple beam automatic load height detection sensor for
dark or shiny loads
Separate 1 to 12 revolution top & bottom wrap control
Selectable Reduced Film Tension parameters for
wrapping top and/or bottom of load
Non-proprietary UL/CSA approved components
A – B – C wrap program selector with capability
to input
and store unique wrapping parameters for
each program
Wiring to be numbered and color coded to European
standards
Structural Features:
All structural and formed steel construction
Forklift truck portable base structure design –
lifting tubes
included for front and rear access
Electro-static powder coated paint finish
Electrical Requirement:
115 Volts 1 Phase 60 Hz 15 Amps with dedicated service
Up to 35 loads per hour
