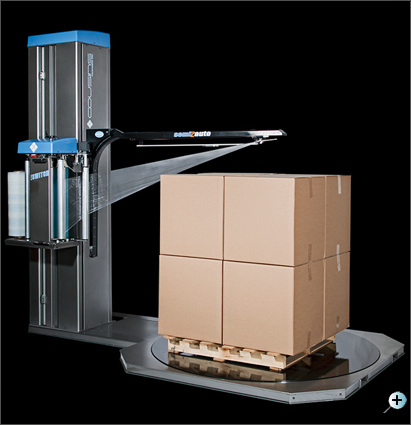

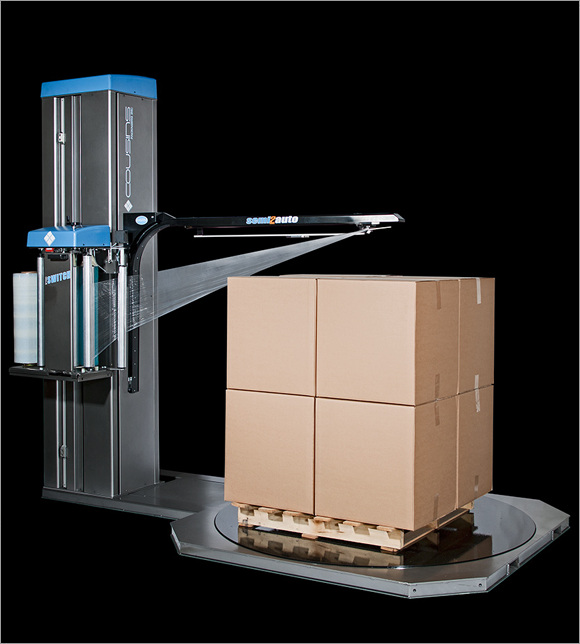

LP-SWA
download specification
download brochure
view control panel
download footprint
view video

LP-SWA SERIES Features and Specifications
Production Speed:   Up to 35 loads per hour
NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
Load Capacity:   Maximum load weight: 4500# dynamic – 10,000# static
  Maximum load size to safely clear the tower: 67” x 67”
   (96” load diagonal) x 80” H
  Maximum load size to remain inboard of the turntable:
   46” W x 46” L (65” load diagonal) x 80” H
Low Profile Turntable:   65” Diameter laser-cut steel plate with surround deck
   protection
  Maintenance free - 54 roller bearing support system
  Turntable height 2.813” from floor
  ANSI # 50 direct chain drive c/w chain tensioner
  Between 3 and 12 RPM rotational speed c/w soft start
   acceleration
  1/2 HP AC variable speed motor
  Final revolution deceleration and positive stop alignment
  Rugged surround deck for turntable protection, 3 sided
   loading and pit mounting
  Front and back forklift ports for easy movement
  Accu-Count exact turntable positioning system for
   additional film savings!
  Optional loading ramp 60” long x 48” wide complete with
   10” level porch area available
Film Carriage Elevator:   1/2 HP DC variable speed motor
  ANSI #40 direct chain drive c/w shock dampener &
   Anti-Fall Safety Device
Film Delivery System:   NEW Super Rapid Thread II ™ 20” capacity pre-stretch
   film carriage
  Special Film Threading Device – Uniquely orientates
   the sticky side of the film against the pre-stretch
   rollers and the inside of the load

  1/2 HP AC variable speed motor
  Fully electronic dynamic dancer corner compensation
  33% to 313% fixed stretch capability
  Pre-stretch ratio variable using easy sprocket change
  Carriage Descent Obstruction Safety Shut-Off Device
  Side mounted film carriage for operator convenience and
   safety
  Superior film-to-roller contact area
  Lifetime warranty on pre-stretch rollers
Automation Features:

All Electric – No Pneumatics Required

Patent Pending” Cousins exclusive patent pending A-Arm film cut and hold device starts and ends the wrap process at the top of the load. This uniquely different approach to attaching and cutting the stretch film provides you with these benefits:

• Selectable top banding capability
• Stabilizes the load early in the wrap cycle
• Places the ending film tail at the top of the load instead of
  the bottom
• There is no film clamp on the turntable that can be
  damaged by debris or operator error – also eliminates the
  need for slip-rings to supply power onto the turntable for
  less maintenance
• Load placement on the turntable is not critical
• No air hook-ups or noisy compressors
New Automatic First Revolution Load Scanning Safety
  Feature detects uneven or partial stacked top layers and
  automatically adjusts A-Arm height clear of obstructions
• A-Arm Anti-Fall Safety Device

Control Features:   Electronic controls with LED operator interface
  Wireless remote start/stop control with one transmitter
   (additional transmitters are available)
  Power Off – On – Reset switch & Power On indicator
   light
  Single button Auto Wrap Cycle Start/Pause
  Cycle Pause for applying top sheets
  Reinforce Wrap control for mid-wrapping
  Emergency Stop button
  Turntable Jog button
  Film Carriage Lower & Raise buttons
  Film Tension (Force-to-Load) control
  Separate film carriage raise & lower speed controls
  Variable turntable speed control
  Triple beam automatic load height detection sensor for
   dark or shiny loads
  Separate 1 to 12 revolution top & bottom wrap control
  Selectable Reduced Film Tension parameters for
   wrapping top and/or bottom of load
  Non-proprietary UL/CSA approved components
  A – B – C wrap program selector with capability to input
   and store unique wrapping parameters for each program
  Wiring to be numbered and color coded to European
   standards
Structural Features:   All structural steel construction
  Forklift truck portable base structure design – lifting tubes
   included for front and rear access
  Electro-static powder coated paint finish
Electrical Requirement:
  115 Volts 1 Phase 60 Hz 15 Amps with dedicated service
