| Production
Speed: |
Up to 35 loads per hour
NOTE: Process rates will vary with load size,
number of
wraps & forklift load/unload
time |
 |
| Load Capacity: |
Maximum load weight: 4000# dynamic – 10,000# static
Maximum load size: 50” W x 50” L (71”
load diagonal) x
80” H |
|

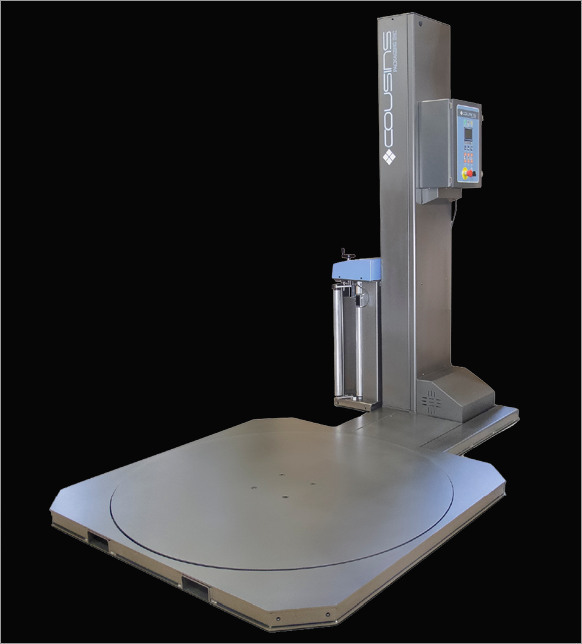

| Low Profile Turntable: |
57” Diameter laser-cut steel plate with surround
deck
protection
Maintenance free - 36 roller bearing support system
Turntable height 2.813” from floor
ANSI # 50 direct chain drive c/w chain tensioner
Between 3 and 12 RPM rotational speed c/w soft start
acceleration
1/2 HP AC variable speed motor
Final revolution deceleration and positive stop alignment
Rugged surround deck for turntable protection, 3 sided
loading and pit mounting
Front and back forklift ports for easy movement
Accu-Count exact turntable positioning system for
additional film savings!
Optional loading ramp 60” long x 48” wide
complete with
10” level porch area available
|
|
| Film Carriage Elevator: |
1/2 HP AC variable speed motor
ANSI #40 direct chain drive c/w shock dampener &
Anti-Fall Safety
Device |
|
| Film Delivery System: |
Special Film Threading
Device – Uniquely orientates
the
sticky side of the film against the pre-stretch
rollers
and the inside of the load
1/2 HP AC variable speed motor
Fully electronic dynamic dancer corner compensation
33% to 313% fixed stretch capability
Pre-stretch ratio variable using easy sprocket change
Carriage Descent Obstruction Safety Shut-Off Device
Side mounted film carriage for operator convenience
and
safety
Superior film-to-roller
contact area
Lifetime warranty on pre-stretch roller |
|
| Control Features: |
Electronic controls with LCD operator interface
Power Off – On – Reset switch & Power
On indicator
light
Single button Auto Wrap Cycle Start/Pause
Cycle Pause for applying top sheets
Reinforce Wrap control for mid-wrapping
Emergency Stop button
Turntable Jog button
Film Carriage Lower & Raise buttons
Film Tension (Force-to-Load) control
Separate film carriage raise & lower speed controls
Operator programmable turntable speed control
Triple beam automatic load height detection sensor for
dark or shiny loads
Separate 1 to 12 revolution top & bottom wrap control
Selectable Reduced Film Tension parameters for
wrapping top and/or bottom of load
A – B – C wrap program selector with capability
to input
and store unique wrapping parameters for each program
Wiring to be numbered and color coded |
|
| Structural Features: |
All structural and formed steel construction
Forklift truck portable base structure design –
lifting tubes
included for front and rear access
Electro-static powder coated paint finish |
|
Electrical Requirement:
|
115 Volts 1 Phase 60 Hz 15 Amps with dedicated service |
