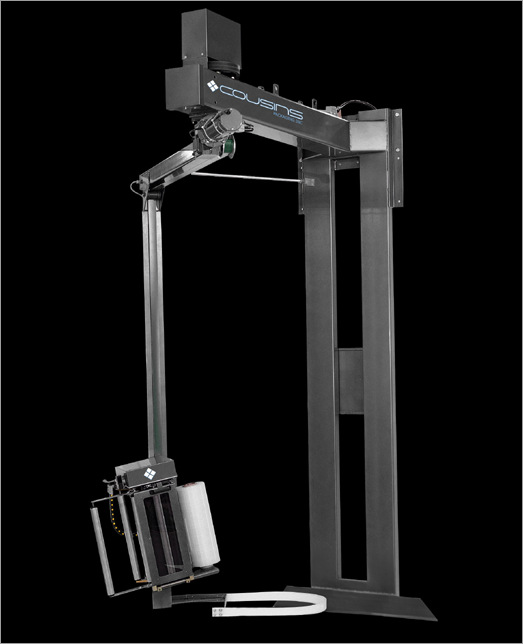

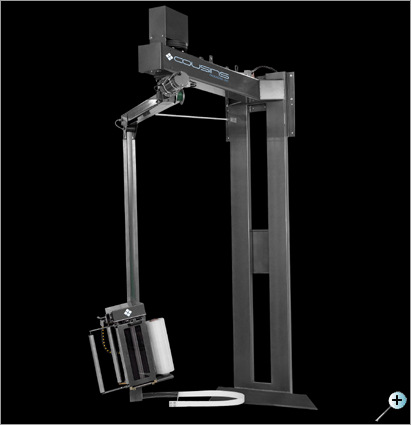

4100 titan wm


4100 titan wm
download specification
download brochure
download footprint

4100 TITAN WM Features and Specifications
Note: PM / WM refers to the machine mounting style. Requires a secure structural wall, or a building column or post for mounting. The footprint is smaller than free-standing styles, requiring less floor space. (Note – dimensional details of the existing column or post must be submitted when ordering the PM version so that the appropriate post-mount bracket can be provided.)
Production Speed:   1-30 loads per hour
NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
Load Capacity:   Maximum load weight: Unlimited (floor supported)
  Maximum load size: 50” W x 50” L (71” max. load
   diagonal) x 86” H (plus up to 4” top overlap)
Rotary Arm:   Double flange bearing support system
  Twin V-belt drive pulleys with belt tensioner
  1-12 RPM rotational speed c/w soft start acceleration
  Final revolution deceleration and positive stop alignment
  1/2 HP DC variable speed motor
Film Carriage Elevator:   1/2 HP DC variable speed motor
  Direct flat belt drive system
  Maintenance free 12 point carriage guidance system
Film Delivery System:   Super Rapid Thread™ 20” capacity pre-stretch carriage
   with Patent Pending pressure balanced nip roller system
  1/2 HP DC variable speed motor
  Fully electronic dynamic dancer corner compensation
  33 to 313% fixed stretch capability
  Pre-stretch ratio variable by easy sprocket change
  Rapid Thread™ Safety Door with auto power cut-off
   switch
Control Features:   Simple to operate
  PANASONIC PLC
  Power Off – On – Reset switch & Power On indicator light
  Single button Auto Wrap Cycle Start/Pause
  Cycle Pause for applying top sheets
  Base or Top Wraps First program
  Reinforce Wrap control for mid-wrapping
  Up Only or Up/Down wrap program
  Emergency Stop button
  Rotary Arm Jog switch
  Film Carriage Lower/Raise switch
  Film tension (Force-to-Load) control
  Separate film carriage raise & lower speed controls
  Variable rotary arm speed control
  Rotary arm and carriage elevator dynamic braking system
  Triple beam type auto load height sensing photo-eye,
   detects dark or shiny loads
  Separate 1 to 9 revolution top & bottom wrap control
  NEMA 12 control panel enclosure
  Dust tight slip ring assembly
  Non-proprietary UL/CSA approved components
Safety Features:   Rotary Arm Obstruction Emergency Safety Stop
   Sensor
Structural Features:   All structural steel construction
  Integral structural steel wall/floor mounting stand
  Electro-static powder coated paint finish
Electrical Requirement:
  115 Volts 1 Phase 60 Hz 15 Amps
