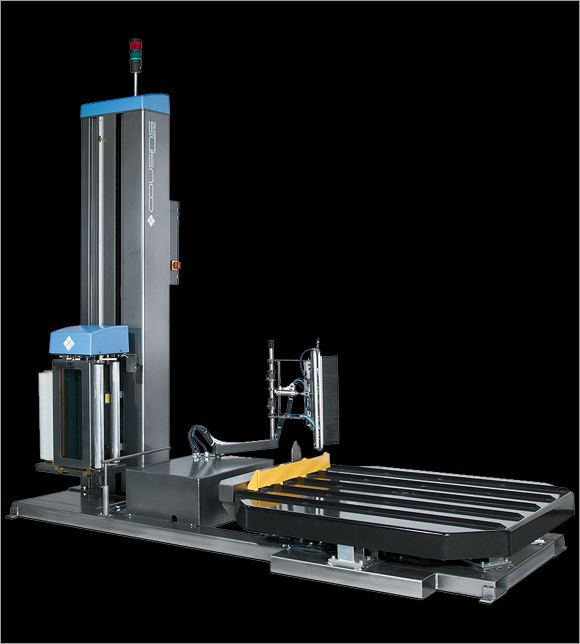

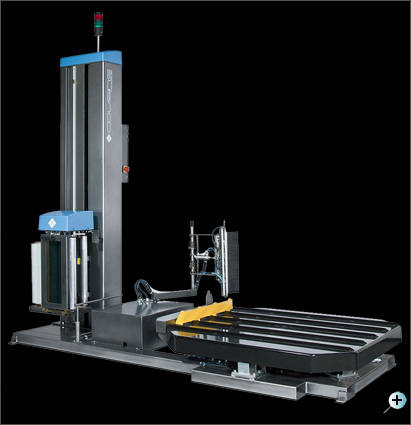

| Production
Speed: |
 1-35
loads per hour
NOTE: Process rates will
vary with load size, number of
wraps & forklift
load/unload time |
 |
| Load Capacity: |
Maximum
load weight: 5,000# dynamic – 10,000#
static
Maximum load size: 50” W x 50” L
(71” max. load
diagonal) x 80” H (plus up to 4” top
overlap)
Minimum load size: 30” W x 30” L
x 24” H |
|
| Turntable: |
52” octagonal
5/16” thick formed steel plate turntable
4 point caster support system
Turntable height less than 12” from
floor
ANSI #50 direct chain drive c/w chain
tensioner
3-12 RPM rotational speed c/w soft
start acceleration
1/2 HP DC variable speed motor
Final revolution deceleration and
positive stop alignment
Front & back forklift ports for
easy movement |
|
| Film Carriage Elevator: |
1/2
HP DC variable speed motor
ANSI #40 direct chain drive c/w shock
dampener &
Anti-Fall
Safety Device
Maintenance free 12 point carriage
guidance system |
|
| Film Delivery System: |
Super
Rapid Thread™ 20” capacity pre-stretch
carriage
with Patent Pending pressure balanced nip
roller system
1/2 HP DC variable speed motor
Fully electronic dynamic dancer corner
compensation
33 to 313% fixed stretch capability
Pre-stretch ratio variable by easy
sprocket change
Rapid Thread™ Safety Door with
auto power cut-off
switch
Carriage Descent Obstruction Safety Shut-Off
Device
Side mounted film carriage for operator
convenience and
safety |
|
| Automation Features: |
“All Electric – No Pneumatics
Required”
Electro-mechanically actuated film
clamp mechanism
Electro-mechanically actuated film
tail cut/wipe arm
mechanism
Ni-chrome
impulse hot wire film cut off c/w automatic
periodic
cleaning cycle |
|
| Control Features: |
PANASONIC
PLC with Touchscreen Operator Interface
Power Off – On – Reset
switch & Power
On indicator light
Single button Auto Wrap Cycle Start/Pause
Cycle Pause for applying top sheets
Reinforce Wrap control for mid-wrapping
Emergency Stop button
Turntable Jog button
Film Carriage Lower & Raise buttons
Film Clamp Open/Close button
Film tension (Force-to-Load) control
Separate film carriage raise & lower
speed controls
Variable turntable speed control
Triple beam auto load height sensing
photo-eye, detects dark
or shiny loads
Separate 1 to 12 revolution top & bottom
wrap control
Selectable Reduced Bottom Film Force
parameter for
wrapping bottom of load
A – B – C Wrap Program
selector with capability to input and
store unique wrapping parameters for each
program
Pendant Start/Stop push-button station
for remote
operator
control – optional lanyard or wireless
remote
control available
NEMA 12 control panel enclosure
Non-proprietary UL/CSA approved components |
|
| Structural Features: |
All
structural steel construction
Forklift truck portable base structure
design – lifting
tubes
included for front and rear access
Fully guarded structural steel H-beam
machine tower
Electro-static powder coated paint
finish |
|
Electrical Requirement:
|
115
Volts 1 Phase 60 Hz 15 Amps |
