1-35
loads per hour
NOTE: Process rates will vary with load size,
number of wraps & forklift load/unload
time
Load Capacity:
Maximum
load weight: 5,000# dynamic – 10,000#
static Maximum load size: 50” W x 50” L
(71” max. load
diagonal) x 80” H (plus up to 2” top
overlap)
Turntable:
57” diameter
laser-cut steel plate with surround deck
protection - 3/8” thick Maintenance free - 36 roller bearing
support system Turntable height 2.938” from
floor ANSI # 50 direct chain drive c/w chain
tensioner 3-12 RPM rotational speed c/w soft
start acceleration 1/2 HP DC variable speed motor Final revolution deceleration and
positive stop alignment Rugged surround deck for added protection,
3 sided
loading
and pit mounting Front and back forklift ports for
easy movement Accu-Count exact turntable positioning
system for additional
film savings! Optional loading ramp 60” long
x 48” wide
complete with 10” level
porch area available
Film Carriage Elevator:
1/2
HP DC variable speed motor ANSI #40 direct chain drive c/w shock
dampener &
Anti-Fall
Safety Device Maintenance free 12 point carriage
guidance system
Film Delivery System:
Super
Rapid Thread™ 20” capacity pre-stretch
carriage with Patent Pending pressure balanced nip
roller system 1/2 HP DC variable speed motor Fully electronic dynamic dancer corner
compensation 33 to 313% fixed stretch capability Pre-stretch ratio variable by easy
sprocket change Rapid Thread™ Safety Door with auto
power cut-off
switch Carriage Descent Obstruction Safety
Shut-Off Device Side mounted film carriage for operator
convenience and safety
Automation Features:
“All Electric – No Pneumatics
Required”

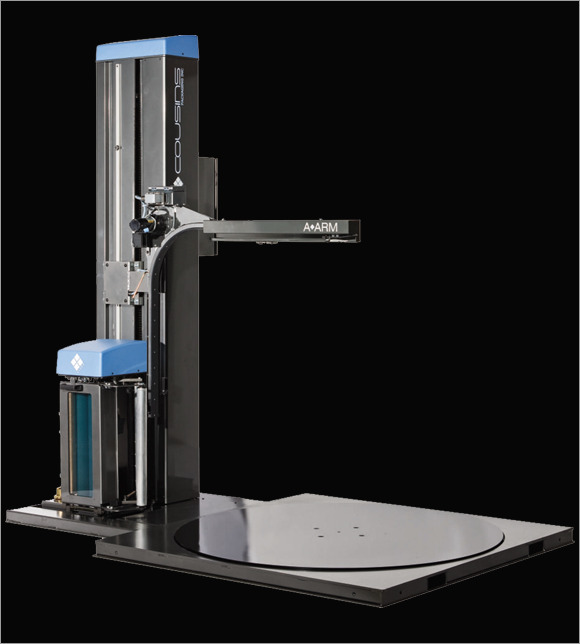

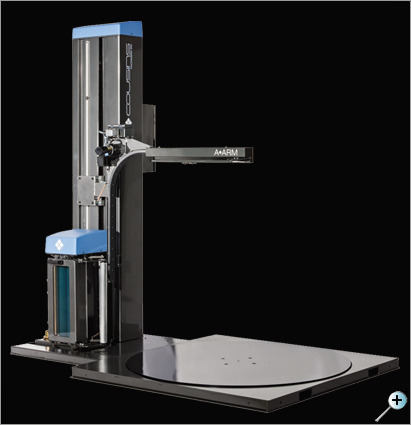

“Patent Pending” Cousins exclusive patent
pending A-Arm film
cut and hold device starts and ends the wrap
process at the top
of the load. This uniquely different approach
to attaching and
cutting the stretch film provides you with
these benefits:
Selectable top banding capability Stabilizes the load early in the wrap
cycle Places the ending film tail at the
top of the load instead of the
bottom There is no film clamp on the turntable
that can be damaged
by debris or operator error – also
eliminates the need for sliprings
to supply power onto the turntable for less
maintenance Load placement on the turntable is
not critical No air hook-ups or noisy compressors Automatic First Revolution Load Scanning
Safety
Feature detects uneven or partial stacked
top layers and automatically adjusts A-Arm height clear
of obstructions A-Arm Anti-Fall Safety Device
Control Features:
PANASONIC
PLC with Touchscreen Operator Interface Power Off – On – Reset
switch & Power
On indicator light Single button Auto Wrap Cycle Start/Pause Cycle Pause for applying top sheets Reinforce Wrap control for mid-wrapping Emergency Stop button Turntable Jog button Film Carriage Lower & Raise buttons Film tension (Force-to-Load) control Separate film carriage raise & lower
speed controls Variable turntable speed control Triple
beam auto load height sensing photo-eye,
detects dark
or shiny loads Separate 1 to 12 revolution top & bottom
wrap control Selectable
Reduced Film Tension parameters for wrapping
top and/or bottom of load A – B – C Wrap Program
selector with capability to input and
store unique wrapping parameters for each
program Pendant Start/Stop push-button station
for remote operator
control – optional lanyard or wireless
remote control available NEMA 12 control panel enclosure Non-proprietary UL/CSA approved components 3 wrap modes: automatic spiral wrapping
/ automatic top banding / semi-automatic 3 machines in one!
Structural Features:
All
structural steel construction Forklift truck portable base structure
design – lifting
tubes included for front and rear access Fully guarded structural steel H-beam
machine tower Electro-static powder coated paint
finish
